Product Paramenters
Model

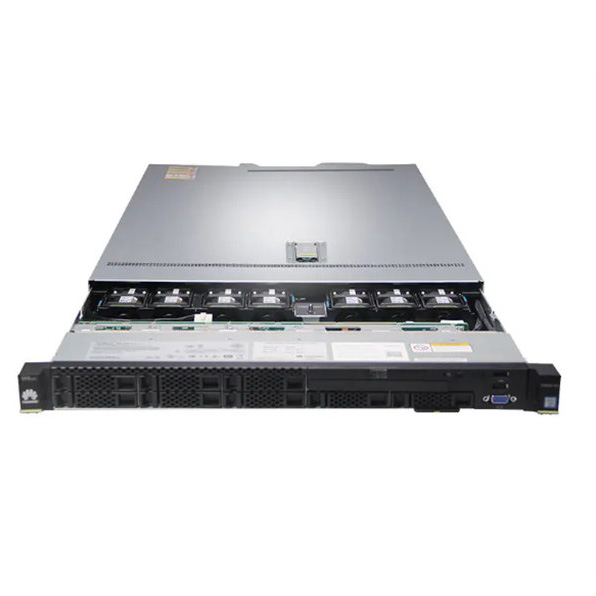

server1288HV5
Form Factor
1U, 2-socket rack server
Processors
1 or 2 2nd Generation Intel® Xeon® Scalable processors (3200/4200/5200/6200/8200 series), up to 205W
Memory
24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel® Optane™ PMem modules (100 series), 2666 MT/s
Internal Storage
8 x 2.5-inch SAS/SATA HDDs or SSDs，12/16/20 x 3.5-inch SAS/SATA HDDs
RAID Support
RAID 0, 1, 10, 1E, 5, 50, 6, or 60,Configured with a supercapacitor for cache power-off protection (optional),RAID level
migration, drive roaming, self-diagnosis, and web-based remote configuration.
Network Ports
LOM: 2 x 10 GE + 2 x GE ports
Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports
PCIe Expansion
Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC
Heterogeneous accelerator card
Up to 8 single-width half-height half-length accelerator cards
Up to 2 dual-width full-height full-length accelerator cards
Fan Modules
4 hot-swappable fan modules with optional N+1 redundancy
Power Supply Units
2 hot-swappable PSUs with support for 1+1 redundancy
Management
BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis,
automated O&M, and hardware security hardening
Operating Temperature
5ºC to 45ºC (41ºF to 113ºF), and ASHRAE A3 and A4 compliant
Certifications
CE, UL, FCC, CCC, and RoHS
Installation Suite
L-shaped guide rails, adjustable guide rails, and holding rails
Dimensions (H x W x D)
Chassis with 3.5-inch hard drives: 43 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.)
Chassis with 2.5-inch hard drives: 43 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.)
| Model |
Processor |
Accelerator Card |
DIMM |
Storage |
| FusionServer 1288H V7 |
Two 4nd Generation Intel® Xeon® Scalable processors |
3 x SW GPUs |
32(12 TB) |
4 x 3.5ʺ; 12 x 2.5ʺ; 10 x NVMeʺ; 32 x E1.sʺ; 20 x E3.s |
| FusionServer 1288H V6 |
Two third-generation Intel® Xeon® Scalable processors |
3 x SW GPUs |
32(12 TB) |
4 x 3.5ʺ; 12 x 2.5ʺ; 10 x NVMe |
| FusionServer 1288H V5 |
Two 2nd Generation Intel® Xeon® Scalable processors |
2 x SW GPUs |
24(7.5 TB) |
10 x 2.5ʺ; 8 x NVMe |
| FusionServer 2288H V7 |
Two 4nd Generation Intel® Xeon® Scalable processors |
14 x SW GPUs and 4 x DW GPUs |
32(12 TB) |
20 x 3.5ʺ; 45 x 2.5ʺ; 34 x NVMe 36 x E1.sʺ; 48 x E3.s |
| FusionServer 2288H V6 |
Two third-generation Intel® Xeon® Scalable processors |
11 x SW GPUs and 4 x DW GPUs |
32(12 TB) |
20 x 3.5ʺ; 45 x 2.5ʺ; 34 x NVMe |
| FusionServer 2288H V5 |
Two 2nd Generation Intel® Xeon® Scalable processors |
7 x SW GPUs and 2 x DW GPUs |
24(7.5 TB) |
20 x 3.5ʺ; 31 x 2.5ʺ; 28 x NVMe |
| FusionServer 2288 V7 |
Two 4nd Generation Intel® Xeon® Scalable processors |
4 x SW GPUs |
16(4 TB) |
31 x 2.5ʺ; 14 x 3.5ʺ; 4 x NVMe; 2 x E1.s |
| FusionServer 5288 V7 |
Two 4nd Generation Intel® Xeon® Scalable processors |
10 x SW GPUs |
32(8 TB) |
44 x 3.5″ + 4 x NVMe |
| FusionServer 5288 V6 |
Two third-generation Intel® Xeon® Scalable processors |
8 x SW GPUs |
32(12 TB) |
44 x 3.5ʺ + 4 x NVMe |
| FusionServer 5288 V5 |
Two 2nd Generation Intel® Xeon® Scalable processors |
6 x SW GPUs |
24(7.5 TB) |
44 x 3.5″ + 4 x NVMe |
| FusionServer 2298 V5 |
Two 2nd Generation Intel® Xeon® Scalable processors |
12(768GB) |
24 x 3.5ʺ + 4 x 2.5ʺ; 4 x NVMe |
|
| FusionServer 2488 V5 |
Four 2nd Generation Intel® Xeon® Scalable processors |
2 x SW GPUs |
32(4 TB) |
25 x 2.5ʺ; 8 x NVMe |
| FusionServer 2488H V7 |
Two 4nd Generation Intel® Xeon® Scalable processors |
4 x SW GPUs |
64(24 TB) |
25 x 2.5ʺ; 4 x 2.5ʺ + 8 x NVMe |
| FusionServer 2488H V6 |
Four third-generation Intel® Xeon® Scalable processors |
4 x SW GPUs and 2 x DW GPUs |
48(15 TB) |
25 x 2.5ʺ; 4 x 2.5ʺ + 16 x NVMe |
| FusionServer 2488H V5 |
Four 2nd Generation Intel® Xeon® Scalable processors |
3 x SW GPUs |
48(15 TB) |
25 x 2.5ʺ; 24 x NVMe |
| FusionServer 5885H V7 |
Two 4nd Generation Intel® Xeon® Scalable processors |
4 x DW GPUs |
64(24 TB) |
52 x 2.5ʺ; 25 x 2.5ʺ + 24 x NVMeʺ; 36 x E1.s |
| FusionServer 5885H V6 |
Four 3nd Generation Intel® Xeon® Scalable processors |
4 x DW GPU |
48(15 TB) |
25 x 2.5ʺ; 4 x 2.5ʺ+16 x NVMe |
| FusionServer 5885H V5 |
Four 2nd Generation Intel® Xeon® Scalable processors |
4 x SW GPUs and 2 x DW GPUs |
48(15 TB) |
25 x 2.5ʺ; 24 x NVMe |
| KunLun 9008 V5 |
Eight 2nd Generation Intel® Xeon® Scalable processors |
-- |
96(18 TB) |
48 x 2.5ʺ ; 40 x NVMe |
