| EX3400-48P Specification |
|
| Description |

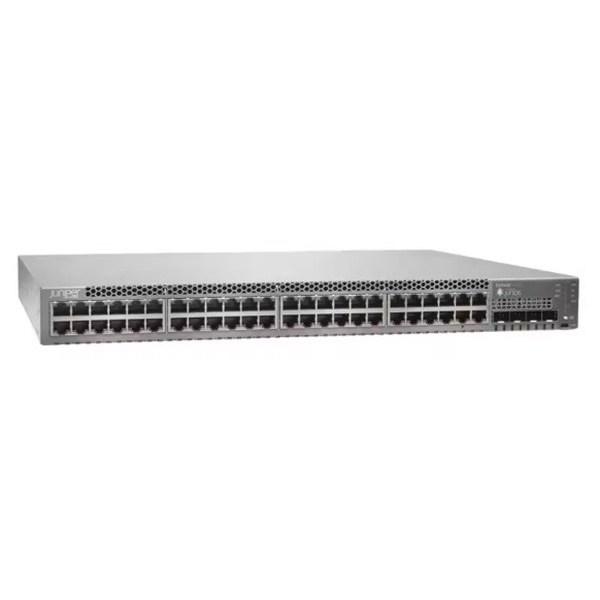

EX3400 48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
| Form factor |
Fixed platform Virtual Chassis configuration consisting of up to 10 switches Junos Fusion Enterprise Satellite device |
| Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) 1 rack unit |
| Backplane speed |
160 Gbps |
| Data rate |
336 Gbps |
| Throughput |
250 Mpps (wire speed) |
| 40GBASE quad small form-factor pluggable plus transceiver (QSFP+) port densities |
2 |
| 100GBASE C form-factor pluggable transceiver (CFP) port densities |
N/A |
| Resiliency |
Redundant, field-replaceable power supplies Redundant trunk groups that provide port redundancy and simplify switch configuration |
| Operating system |
Junos OS |
| Traffic monitoring |
sFlow |
| Quality-of-service (QoS) queues/port |
8 unicast/4 multicast |
| MAC addresses |
32,000 |
| Jumbo frames |
9216 bytes |
| IPv4 unicast/multicast routes |
36,000/4,000 |
| IPv6 unicast/multicast routes |
18,000/2,000 |
| Number of VLANs |
4,096 |
| ARP entries |
16,000 |
