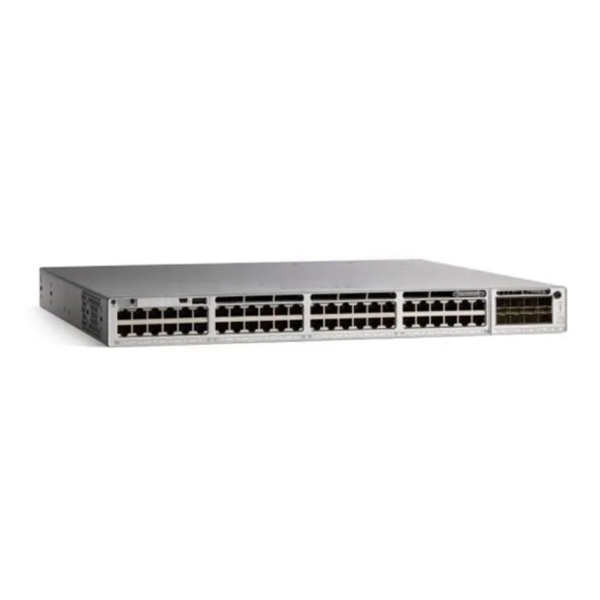

| C9300-48T-E Specification |
|
| Part Number |
C9300-48T-E |
| Product Description |
9300 48-port data only, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports |
48 |
| Default AC power supply |
350WAC |
| Available PoE power |
-- |
| Cisco StackWise-480 |
Yes |
| Cisco StackPower |
Yes |
| Default power supply |
PWR-C1-350WAC-P/2 |
| Switching capacity |
256 Gbps on 48-port Gigabit Ethernet model |
| Stacking bandwidth |
480 Gbps |
| Total number of MAC addresses |
32,000 |
| Total number of IPv4 routes (ARP plus learned routes) |
32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries |
32,000 |
| IPv6 routing entries |
16,000 |
| Multicast routing scale |
8000 |
| QoS scale entries |
5120 |
| ACL scale entries |
5120 |
| Packet buffer per SKU |
16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries |
64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM |
8 GB |
| Flash |
16 GB |
| VLAN IDs |
4000 |
| Total Switched Virtual Interfaces (SVIs) |
2000 |
| Jumbo frames |
9198 bytes |
| Total routed ports per 9300 Series stack |
208 |
| Wireless bandwidth per switch |
Up to 96 Gbps on 48-port Gigabit Ethernet model |
| Forwarding rate |
154.76 Mpps |
| Dimensions (H x W x D) |
1.73 x 17.5 x 17.5 Inches |
| Weight |
16.33 Pounds |
