| Product Code |

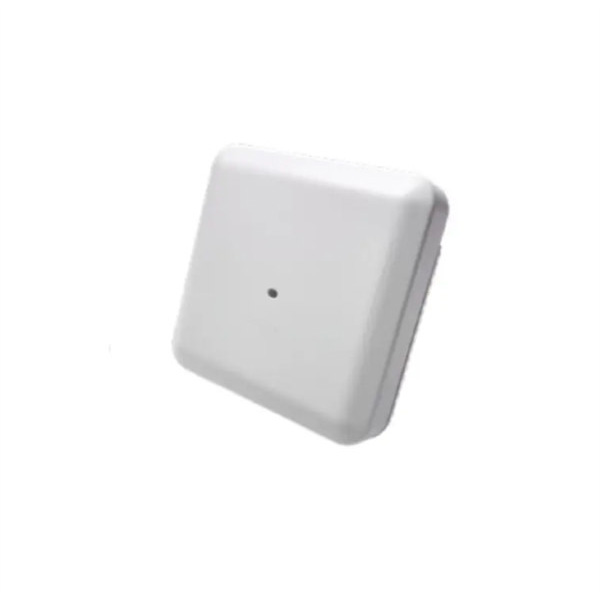

AIR-AP2802I-H-K9 |
| Frequency band and 20-MHz operating channels |
H (H regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.150 to 5.350 GHz; 8 channels - 5.745 to 5.825 GHz; 5 channels |
| Antenna |
Internal Antenna |
| Features |
- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac Beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support |
| Interfaces |
- 2 x 100/1000BASE-T autosensing (RJ-45) - Management console port (RJ-45) - USB 2.0 (enabled via future software) |
| System memory |
- 1024 MB DRAM - 256 MB flash |
| Dimensions (W x L x H) |
8.66 x 8.68 x 2.17 in. |
| Net Weight |
3.53 lb (1.6 kg) |
